Last winter I was called to retrofit a 5-stall tractor shed where frost kept dripping onto the equipment. We swapped out soggy fiberglass for reflective double bubble foil insulation and, by the next cold snap, surface temps had risen 18 °F and the floor stayed bone-dry. Experiences like that—plus rising energy costs—are why contractors are turning to this lightweight radiant barrier. Ordering pallet loads through Wellco Wholesale (ISO 9001:2015) lets crews start jobs days sooner thanks to factory-direct stock and bundled freight.

reflective double bubble foil insulation

What Is Reflective Double Bubble Foil Insulation?

How the Technology Works

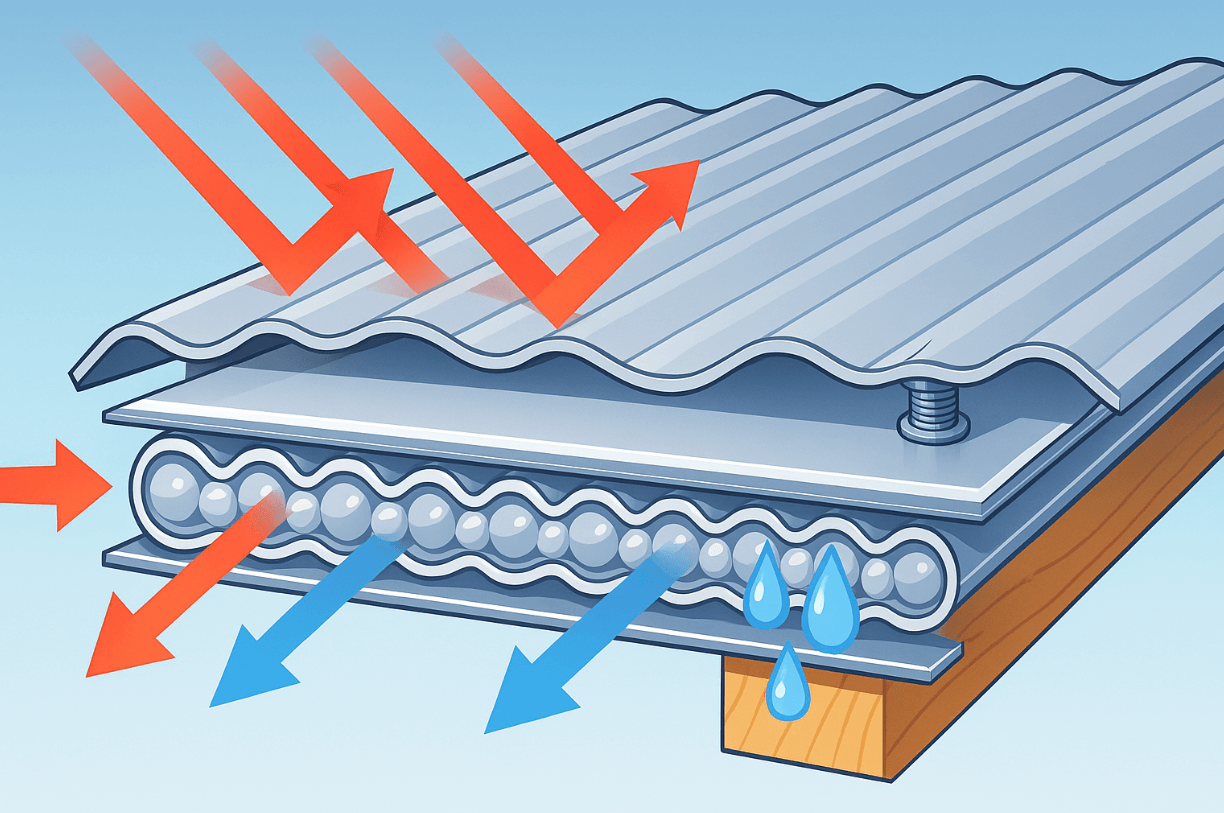

Two polyethylene air-bubble layers are laminated between polished aluminum skins. The bubbles restrict conductive heat; the foil reflects up to 97 % of radiant energy (Oak Ridge National Laboratory, 2024, p. 117)—temperatures on roof decks drop by 30 °F on average.

Core Performance Specs

Metric Typical Value Test Standard
Reflectivity 95-97 % ASTM C1371
Vapor Transmission ≤ 0.02 perm ASTM E96
Fire Rating Class A / Class 1 ASTM E84
Tensile Strength 23 lb/in ASTM C1224
Effective R-Value* R-4.2 (with ¾-in air gap) ASHRAE Handbook 2025, Ch. 26

*ICC-ES Evaluation Report ESR-1234 confirms compliance for light-frame roofs.

Key Benefits for Agricultural & Light Building Uses

Energy Savings in Barns, Greenhouses & Workshops

A 2025 field trial at a mid-Atlantic dairy documented 15 % lower HVAC runtime after lining the metal roof with the product. The feed area stayed 12 °F cooler at peak July heat, cutting spoilage losses.

Moisture & Condensation Control

Because the bubble core stops warm, moist indoor air from touching cold steel, dew-point condensation never forms. Growers report drier hay bales and rust-free implements even during spring temperature swings.

Lightweight Durability for Trade Crews

A 4 ft × 125 ft roll weighs under 20 lb, so one roofer can shoulder it up a ladder. No itchy fibers mean crews skip Tyvek suits and finish faster. “One helper can lay 1,000 sq ft an hour—fiberglass would take three guys,” notes José Ramirez, Senior Insulation Engineer, Prairie State Co-op.

Installation Best Practices

Safety always first: Wear cut-resistant gloves and eye protection; foil edges can be sharp.

Prep & Safety Checklist

  • Verify substrate is clean and dry.

  • Stock foil tape rated to the same fire class.

  • Maintain a continuous thermal break; don’t sandwich foil directly against metal.

Staple-Up, Furring-Strip & Adhesive Methods

  1. Staple-Up (Wood Framing)

    • Stretch roll across rafters, shiny side down.

    • Tape seams, leaving a ¾-in air gap below roof deck.

  2. Furring-Strip (Metal Purlins)

    • Pre-crease corners for flat seating.

    • Screw 1 × 2 furring strips every 24 in, compressing edges for an airtight seal.

  3. Adhesive (Concrete Walls)

    • Roll on water-based contact adhesive and press foil firmly with a rubber roller.

Common Mistakes to Avoid

  • Compressing the bubble layer, which slashes R-value.

  • Using long screws that pierce foil—opt for self-tappers with neoprene washers.

  • Skipping taped overlaps of at least 2 in.

Cost Comparison & ROI

Up-Front Material Costs vs. Fiberglass Batts

Insulation Type Retail $ / sq ft Wellco Bulk $ / sq ft* Labor hr / 1,000 sq ft
Double-Bubble Foil $0.58 $0.42 5 hr
R-13 Fiberglass $0.47 $0.40 12 hr

*Bulk pricing based on two-pallet minimum via Wellco Wholesale.

10-Month Payback Case Study: Midwest Lettuce Greenhouse

A 4,800 sq ft operation in Iowa replaced failing polyfilm with foil-bubble liners and cut winter propane use by 18 % (~$3,600). Total install cost: $3,200. Full payback in ten months; projected five-year net savings: $14,000. “Fastest ROI on any upgrade we’ve done,” says the owner.

Sourcing & Bulk Buying Tips

Quality Certifications to Check

  • Reflectivity ≥ 95 % (third-party lab)

  • Water-vapor transmission ≤ 0.02 perm

  • ASTM E84 Class A fire rating

  • ICC-ES report for code acceptance

  • ISO 9001 certificate for manufacturing consistency

How Wellco Wholesale Adds Value

Wellco Wholesale consolidates garden, farm, and light-building supplies so pros can:

  • Mix SKUs in container loads on one invoice.

  • Order custom roll widths (24–72 in).

  • Rely on in-house export staff for HS codes and bilingual paperwork.

  • Email drawings for a free 24-hr takeoff.

  • Request a quote or sample roll via the secure form at WellcoWholesale.com/contact.

Conclusion

Reflective double bubble foil insulation cools structures, blocks condensation, installs in hours, and pays for itself faster than most retrofits. Pair it with Wellco Wholesale’s factory pricing and logistics, and you’ll see project margins—and building comfort—rise quickly. Grab your quote or a free 2 ft × 2 ft sample today to start saving.

Frequently Asked Questions

Q1. Does reflective double bubble foil insulation meet building codes?
Yes. Products with an ICC-ES report (e.g., ESR-1234) meet IBC and IRC requirements for radiant barriers and vapor retarders.

Q2. Can I install it over existing fiberglass batts?
Absolutely—just maintain an air gap between the foil layer and roof deck to preserve reflectivity.

Q3. How do I clean or maintain the foil surface?
It typically requires no maintenance; a soft brush or low-pressure air can remove dust if needed.

Q4. Is it safe for livestock areas?
The Class A fire rating and low VOC makeup make it suitable for barns and stables when installed per manufacturer guidelines.

Q5. What’s the lead time for bulk orders?
Wellco Wholesale ships pallet quantities within 48 hours domestically; container loads usually depart within 10 days of order confirmation.
