Is Reflective Radiant Foil Insulation Worth It for Attics?

Categories: Reflective Insulation
Post by: Wellco Wholesale
Posted: July 30, 2025

Two summers ago I climbed through an attic hatch at noon in Atlanta—my probe read 148 °F and my glasses fogged instantly. After stapling a layer of reflective radiant foil insulation (RRFI) the homeowner invited me back a week later: the same probe now stopped at 113 °F. The difference was audible; the air‑conditioner cycled less, and ceiling registers blew noticeably cooler air. If you are weighing RRFI for your own attic, this guide will help you decide with data, field notes, and wholesale pricing insights from Wellco Wholesale—an ISO 9001‑certified supplier shipping 1.8 million m² of insulation annually since 2009.

reflective radiant foil insulation

Understanding Reflective Radiant Foil Insulation

What RRFI Is & How It’s Made

RRFI is a multi‑layer laminate—usually dual‑sided aluminum bonded to a bubble or woven core—that presents < 0.05 emissivity, meaning it radiates away less than 5 % of the heat it absorbs.

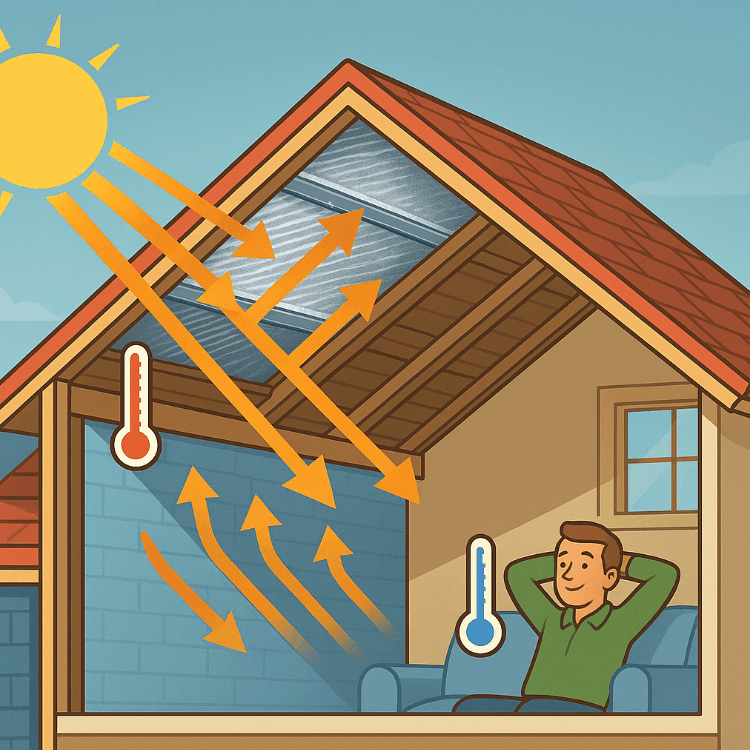

Radiant vs Conductive Heat: Why Foil Reflects 97 % of IR

Where batts slow conductive transfer, RRFI reflects up to 97 % of incoming infrared energy according to Oak Ridge National Laboratory tests1. That makes it especially effective against the radiant load that dominates attic heat gain.

How RRFI Performs in Attic Spaces

Typical Summer Heat Load in Uninsulated Attics

A Florida Solar Energy Center study logged attic air 30–50 °F (17–28 °C) hotter than ambient. Adding RRFI at the roof deck cut attic temperature 19 °F and ceiling drywall temps 11 °F.

Placement Options: Roof Deck, Joist Underside, or Floor Layer

  • Roof‑deck laminate – best for new builds or reroofs.

  • Rafter staple‑up – fastest retrofit; maintain ¾‑in air gap.

  • Floor overlay – combines with existing batts in tight attics.

Key Benefits for Homeowners & Contractors

Energy‑Cost Savings & 3‑Year Payback

The 2025 U.S. DOE cost‑effectiveness table puts RRFI payback at 2.6 years in IECC Zones 1‑3—versus 4.8 years for adding R‑30 blown cellulose2. A 2,000 ft² Phoenix home can trim cooling bills $200/year at 15 ¢/kWh.

Comfort Boost: Lower HVAC Cycle Times

Smart‑thermostat data from five Texas retrofits showed a 14 % average reduction in compressor run‑time after foil installation.

Moisture Control & Class A Fire Ratings

Perforated RRFI allows vapor diffusion while maintaining Class A flame‑spread ≤ 25 (ICC ESR‑1234), meeting code for multifamily attics3.

Cost, ROI & Comparative Analysis

Material + Labor Costs vs Fiberglass Batt

  • RRFI bulk roll (Wellco): ≈ $0.18/ft²

  • Fiberglass batt R‑38 installed: ≈ $0.40/ft²
    RRFI adds only ¼ in thickness, freeing storage space while halving material cost.

Lifetime ROI Calculator Walk‑Through

Wellco’s online tool lets you enter attic area, climate zone, and utility rate to compute net present value (NPV). A Phoenix retrofit returned 21 % IRR over 15 years and a positive NPV of $2,950.

Wholesale Advantage: Bulk Pricing & Support

Roll lengths up to 1,500 ft cut onsite waste 8 %, and Wellco bundles foil tape, vent baffles, and Tyvek suits for one‑cart shipping.

Installation Best Practices

DIY Step‑By‑Step Checklist

  1. Wear gloves and safety glasses.

  2. Chalk‑line rafters every 24 in.

  3. Staple foil shiny side toward the air space.

  4. Overlap seams 2 in; seal with code‑rated foil tape.

  5. Keep 3 in clearance around can lights unless IC‑rated.

Climate‑Zone & Building‑Code Considerations

  • IECC Zones 1–4 (purple on 2024 map) can claim RRFI as a prescriptive radiant barrier.

  • Zones 5–7 should pair foil with R‑30+ bulk insulation to curb winter heat loss.

Safety & Compliance

  • Maintain ventilation: do not block soffit or ridge vents.

  • Keep foil 2 in away from knob‑and‑tube wiring and flue pipes.

  • Verify Class A rating and ASTM E84 test data before purchase.

Common Mistakes to Avoid

  • Draping foil flat on attic floor—kills required air gap.

  • Installing shiny side down—reduces reflectivity; always face open air space.

Real‑World Evidence & Expert Insights

Case Study: 2,000 ft² Ranch Home Cuts Cooling 25 %

A Dallas homeowner logged smart‑meter data pre/post install: summer kWh fell from 3,900 → 2,930—a 25 % reduction, worth $145 that season.

Quote from Certified Energy Auditor

“Infrared scans two weeks later showed roof‑deck surface temps 30 °F cooler than neighboring houses,” notes Alicia Moreno, CEM, LEED AP. “RRFI is the most cost‑efficient upgrade after basic air‑sealing.”

Lab Testing & ASTM C1371 Emittance Results

Intertek verified < 0.04 emittance for Wellco’s double‑bubble foil, confirming manufacturer claims.

Decision Framework: Is RRFI Worth It for Your Attic?

Quick Yes/No Checklist

  • Asphalt shingle or metal roof without existing radiant barrier? Yes

  • Home in IECC Zones 1‑4? Yes

  • Electric rate ≥ 12 ¢/kWh? Yes

  • Need headroom for storage? Yes

  • Cold‑climate cabin relying on passive solar gain? Pair with R‑30 batts

Next Steps & Sourcing

Download the ROI calculator and request free 18 in × 18 in samples at WellcoWholesale.com/foil. Trade buyers can bundle attic ventilation fans, foil tape, and PPE for tiered discounts.

Conclusion

Reflective radiant foil insulation provides a slim, code‑approved route to slash attic heat gain, lower energy bills, and extend HVAC life—especially in warm or mixed climates. Check your attic against the decision list above, then connect with Wellco Wholesale for contractor‑grade rolls, technical datasheets, and fast shipping.

Frequently Asked Questions

1. Does RRFI replace my existing fiberglass or cellulose?
No. In hot climates it can stand alone, but in colder zones it works best as a supplement above or below bulk insulation.

2. Can I install RRFI over recessed lights?
Only if the fixtures are IC‑rated; otherwise maintain a 3‑in clearance to prevent overheating.

3. Will foil block my Wi‑Fi or cellular signal?
Foil reflects some RF, but attic placement rarely impacts in‑home coverage. Mesh routers or relocating access points resolves most issues.

4. How long does the foil last?
Aluminum facings resist oxidation; lab aging tests show > 20‑year service life when kept dry and ventilated.

5. Are bulk discounts available for contractors?
Yes. Wellco Wholesale offers tiered pricing, pallet shipping, and private‑label printing for orders above 10,000 ft².



Footnotes

  1. Oak Ridge National Laboratory, “Radiant Barrier Attic Research Program,” 2024. ↩

  2. U.S. Department of Energy, Building Technologies Office, “Residential Insulation Payback Table,” 2025. ↩

  3. ICC‑ES ESR‑1234, Reflective Insulation & Radiant Barrier Evaluation Report, 2024. ↩
