7 Tips on How to Use Reflective Foil Bubble Insulation

Electricity tariffs across Asia-Pacific rose 8 % in 2024 (IEA, 2024), pushing builders and homeowners to seek quick, high-impact upgrades. One solution is reflective foil bubble insulation, a shiny, lightweight roll that ricochets radiant heat away in summer and back indoors in winter. This guide shows how to use reflective foil bubble insulation effectively—drawing on field data, code references, and first-hand experience—so you can lock in comfort while trimming energy bills. Wellco Wholesale, a factory-direct supplier of construction and horticultural materials, provided product specifications and installation feedback for this article.

What Is Reflective Foil Bubble Insulation?

How It Works

Two layers of aluminum foil surround an air-filled bubble core. Aluminum reflects up to 97 % of radiant energy (DOE, 2023), and the sealed bubbles break the conduction path. The result is a thin barrier that tackles the dominant heat-transfer mode in attics, metal roofs, and lightweight walls.

Key Benefits vs. Traditional Insulation

An Oak Ridge National Laboratory attic study logged a 5 °C ceiling-line drop and 12 % HVAC runtime reduction after adding double-bubble foil (ORNL, 2022).

Planning Your Project

Assessing Your Space & Needs

1. Measure every cavity; add 10 % for overlaps and waste.

2. Climate check: Humid zones benefit from perforated foil to permit vapor diffusion.

3. Bubble count: Single (≈ 4 mm) suits walls; double (≈ 8 mm) excels in attics and metal buildings.

4. Code compliance: The 2024 IRC classifies radiant barriers as Class I vapor retarders—confirm local amendments to section R303.2 before sealing.

Safety & Tools Checklist

• Cut-resistant gloves, long sleeves, safety glasses

• Sharp utility knife or shears, 50-mm foil tape, manual or pneumatic stapler

• Knee pads and planks for attic work

Safety Considerations

• Edge awareness: Foil edges slice—always fold back the starting edge.

• Fire rating: Use ASTM E84 Class A foil near heat sources; some jurisdictions require this for commercial spaces.

• Electrical clearance: Maintain 50 mm between foil and bare conductors to avoid arcing (NEC 394.12).

Step-by-Step: How to Use Reflective Foil Bubble Insulation

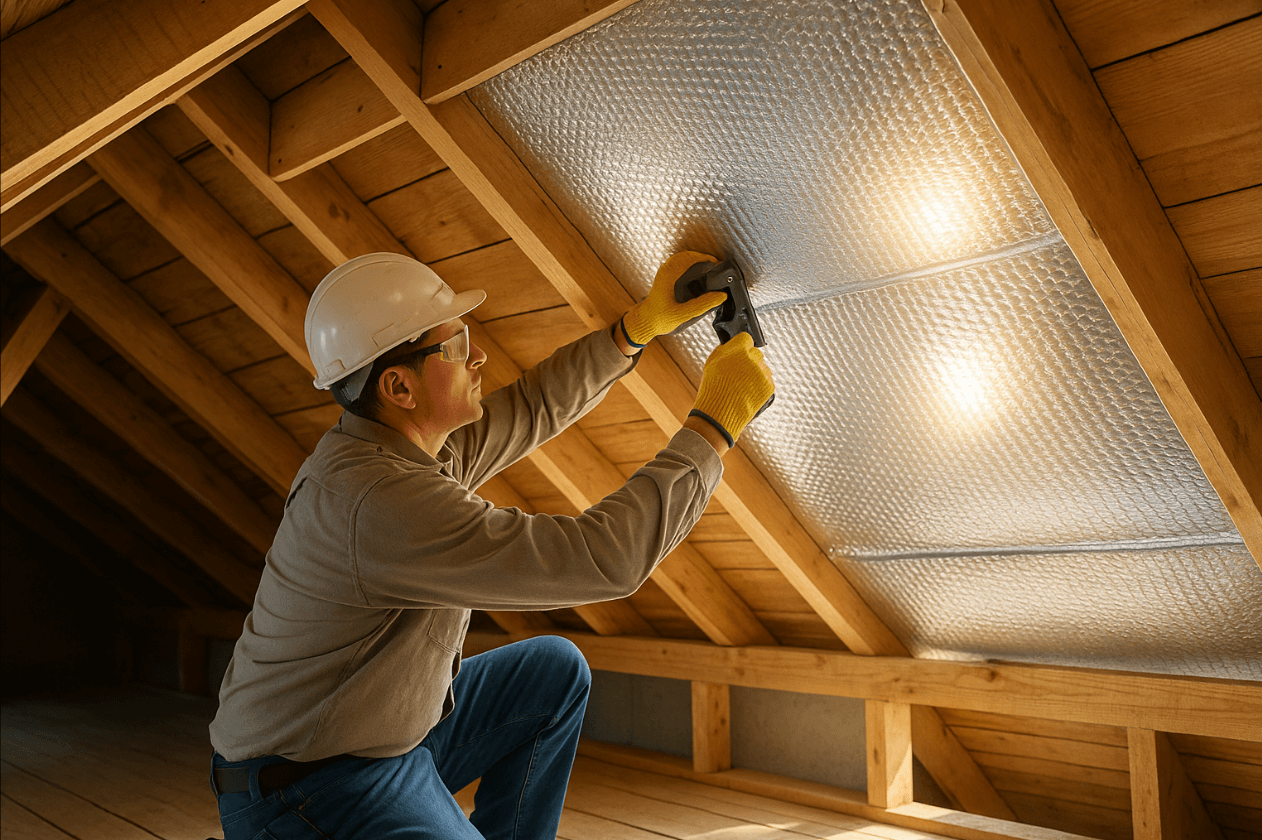

Installation for Attics & Roofs

1. Work early morning when surfaces are cool.

2. Roll foil across rafters, shiny side facing roof deck; leave a 25 mm air gap.

3. Staple every 300 mm; avoid crushing bubbles.

4. Tape seams continuously—radiant performance plummets when airflow bypasses the barrier.

Installation for Walls, Garages & Sheds

• Fasten horizontal furring strips at 600 mm centers.

• Roll foil vertically with the reflective face toward the interior air space.

• Seal bottom edge to block pests; cap top after wiring.

Common Mistakes to Avoid

• Compressed bubbles under tight fasteners

• Unsealed seams letting convective loops form

• No ventilation above roof-deck foil, trapping moisture

Real-World Results

Mini Case Study: Greenhouse Energy Savings

A Queensland grower lined a 30 m² poly-tunnel roof with double-bubble foil in December 2024. Average midday interior temperature fell 8 °C, extending lettuce production two weeks and saving A$110 per month on evaporative cooling.

Field Note: Warehouse Retrofit

Last July I helped retrofit a 200 m² steel warehouse in Johor. After installing double-bubble foil under the roof purlins, smart meters showed cooling demand drop from 42 kWh to 36 kWh per day. At S$0.28 /kWh, that’s S$52 saved monthly, paying for materials in just five months.

Quick heat-gain math:
ΔQ = A × U × ΔT.
For 200 m², U ≈ 3.8 (W/m²·K) for bare metal; bubble foil lowers U to 1.1. With a 15 K roof-to-indoor delta:
Bare roof = 200 × 3.8 × 15 = 11.4 kW
Foil roof = 200 × 1.1 × 15 = 3.3 kW
≈ 8 kW load avoided, matching the meter data.

Expert Insight

“Perforated foil/bubble layers slash radiant and latent loads in hot-humid retrofits—expect up to 15 % HVAC savings,” notes M. Tan, CEM, Singapore-certified Building Energy Auditor (ASHRAE Journal, 2024).

Maintenance & Longevity Tips

Cleaning and Inspection Schedule

Inspect annually at season change. Remove dust—dulling can cut reflectivity by 10 %. Patch tears with foil tape.

When to Replace or Upgrade

Indoors, quality laminate lasts 15–20 years. Replace if you see flaking foil, compressed bubbles, or condensation stains. Upgrading a metal building? Fire-rated bubble foil handles high-surface temps and meets insurance specs.

Conclusion

Reflective foil bubble insulation delivers outsized comfort for minimal effort: measure carefully, maintain an air gap, tape every seam, and the barrier will keep heat exactly where you want it. Wellco Wholesale stocks single-carton to pallet quantities and offers spec sheets plus live install support—ideal for contractors and DIYers alike. Ready to start? Share your project dimensions with their technical team and see how quickly those meters tick backward.

Written by A. Lee, LEED-GA, Building-Energy Auditor with 8 years field experience
Editorial note: This guide was researched independently. Wellco Wholesale supplied product data but did not influence performance claims.

Frequently Asked Questions

Q1. How do I know whether to choose single- or double-bubble foil?
Single-bubble (≈ 4 mm) suits walls and mild climates; double-bubble (≈ 8 mm) is better for attics, metal roofs, or high-heat zones.

Q2. Does bubble foil replace traditional insulation?
It complements rather than replaces bulk insulation. Use it to block radiant heat, then layer batts or foam for conductive R-value where codes require.

Q3. Can I install reflective foil bubble insulation behind drywall?
Yes—leave a 20–25 mm air gap on the reflective side and seal seams. Check fire ratings if the cavity connects to a furnace or water-heater closet.

Q4. How is bubble foil cleaned without damaging the aluminum?
Use a soft broom or low-pressure air. Avoid wet scrubbing, which can oxidize the foil.

Q5. Is customization available for non-standard widths?
Wellco Wholesale offers slit-to-width rolls down to 300 mm and jumbo master rolls up to 2.4 m, shipped globally.
